Description:

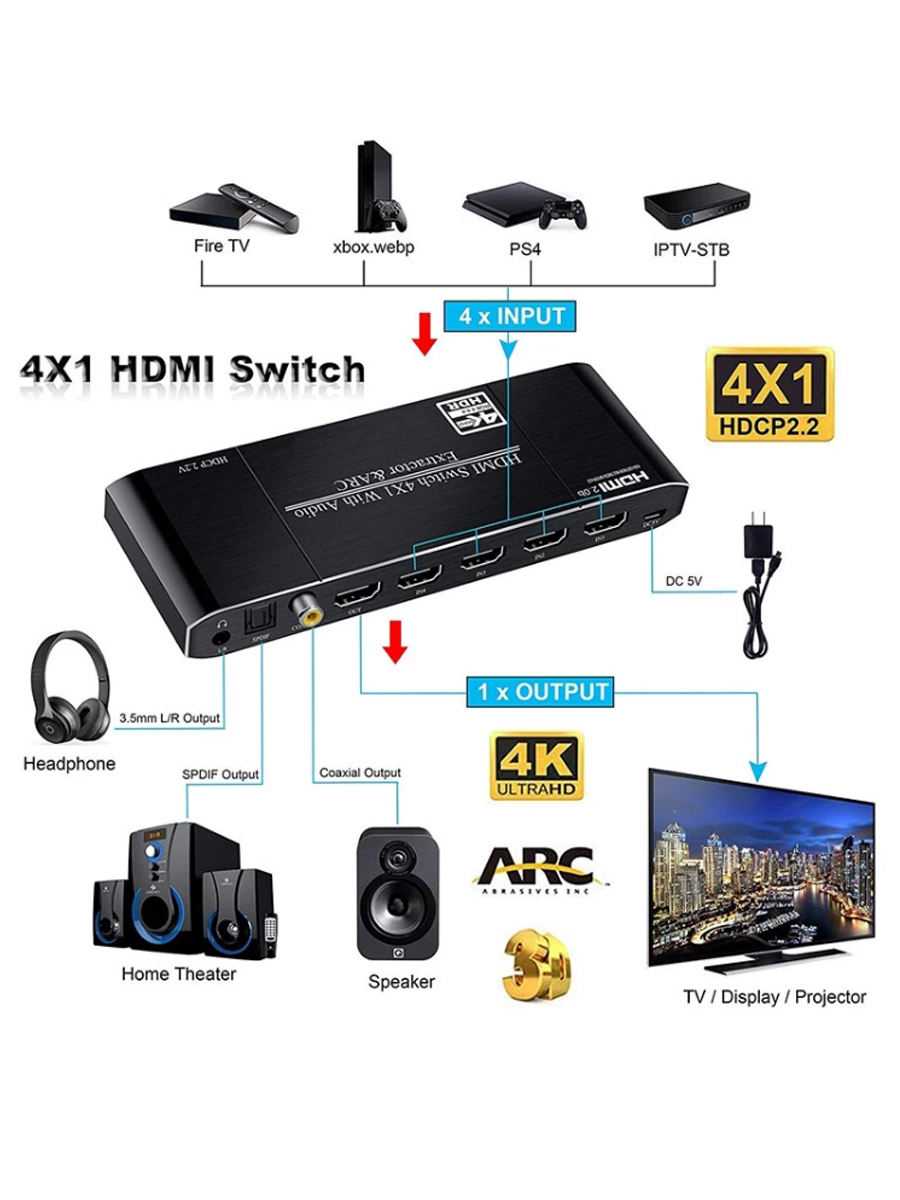

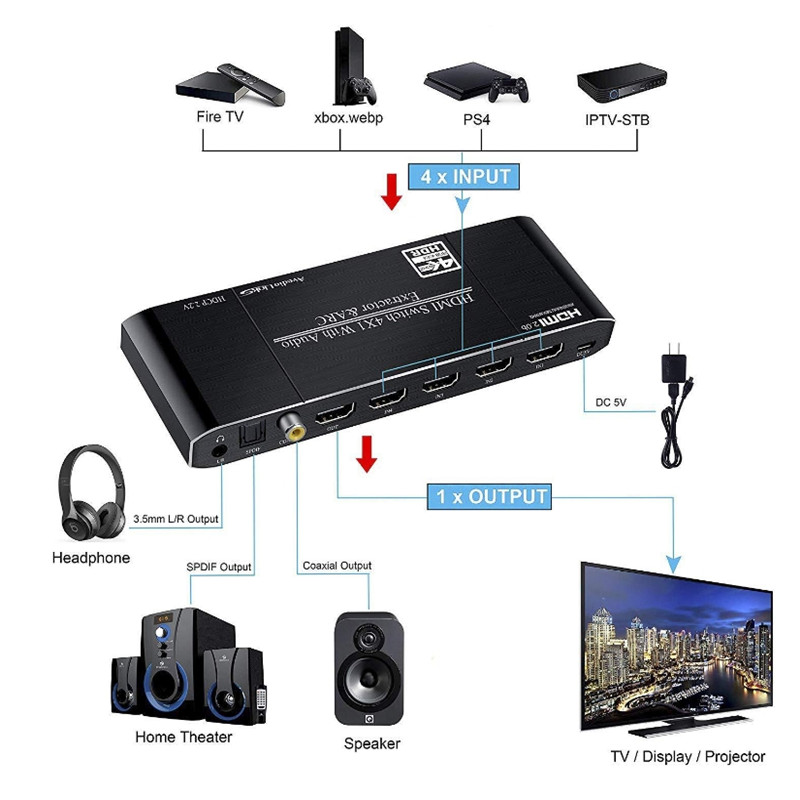

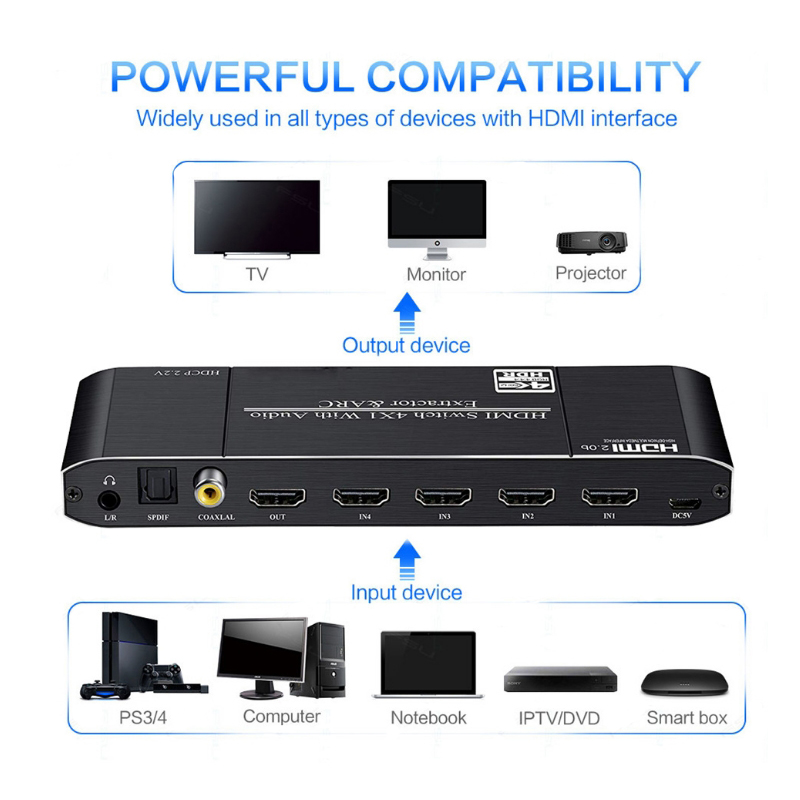

This HDMI Switch support 4 HDMI Inputs to 1 HDMI Output, can be applied for connection, signal amplification, multi-picture conversion and for selection between computer/PC, STB/Smart Box, DVD Player, Blue-ray Player, PS3/PS4 Pro and LCD TV,LCD,Projector, as well as an Audio/Video receiver. The excellent quality allows you to experience the fun brought by the infusion of science and technology into life.

Features:

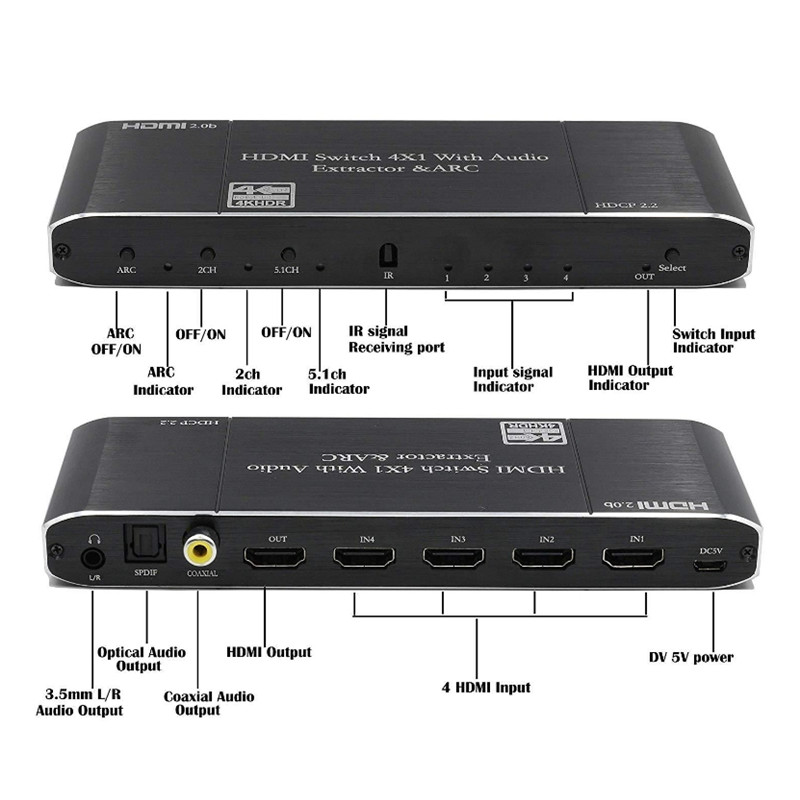

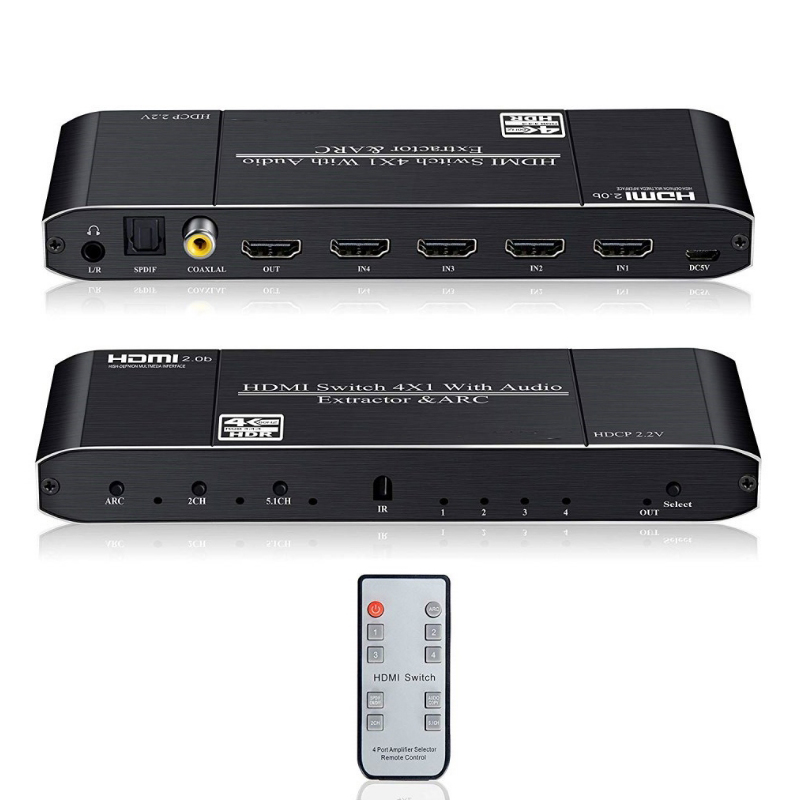

-Input: HDMI x 4

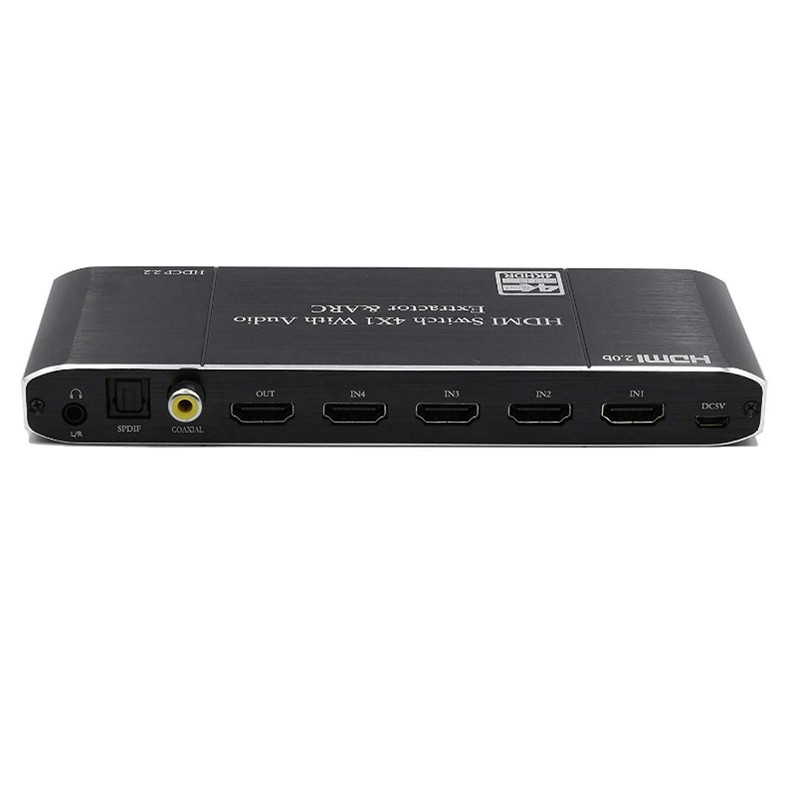

-Output: HDMI x 1, Toslink x 1, 3.5mm L/R x 1, Coaxial x 1

-Coaxial and Toslink port output support ARC. (Note:3.5mm audio port not support ARC function)

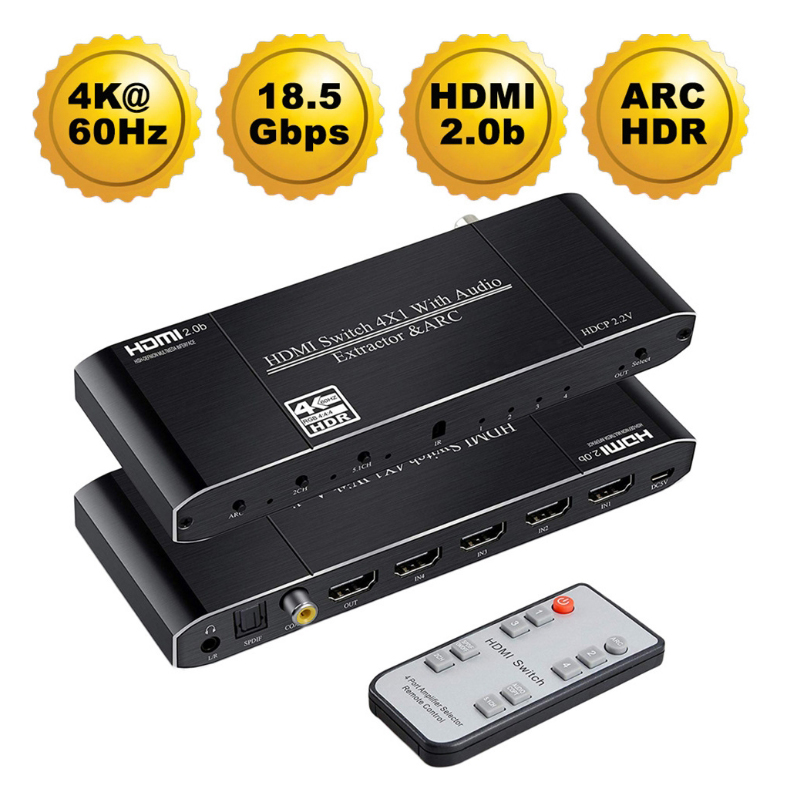

-Support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / YcbCR 4:2:2 /(4k@60hz RGB4:4:4)

-Max bandwidth per channel: 600MHz. Max baud rate per display: 18.5Gbps

-Supports Dolby True-HD, DTS-HD, AC3, DTS, DSD. This HDMI Switch will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats.

-Support 24/30/36 bit deep color per channel (Kindly Note: It is can not compatible with DVI.we do not recommended that you use HDMI to DVI cable connect to your projector /monitor)

-HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resolution up to 4K@60HZ;can reach up to 5 meters if your Resolution up to 4K@30HZ

Note:

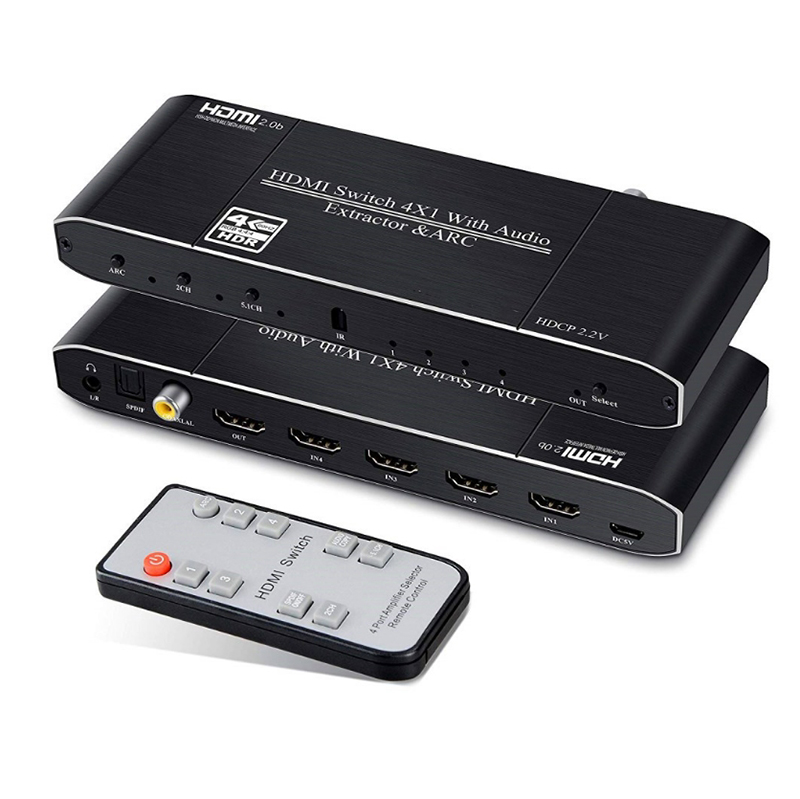

Maximum remote control distance is 8 meters,(warm tip:to better control,we suggest you point at IR light of the switch,finger pulp to press it,Wait 2 seconds each time before next time,please press it properly) you will be going to realize that the display will black screen about 5seconds to change next source. This is normal,please don’t worry.
