Package Contents: 1* HDMI Audio Extractor Converter 1* 3.5mm Audio Cable with L/R Channel 1* 5V/1A Power Adapter 1* User Manual 1 * Box packaging

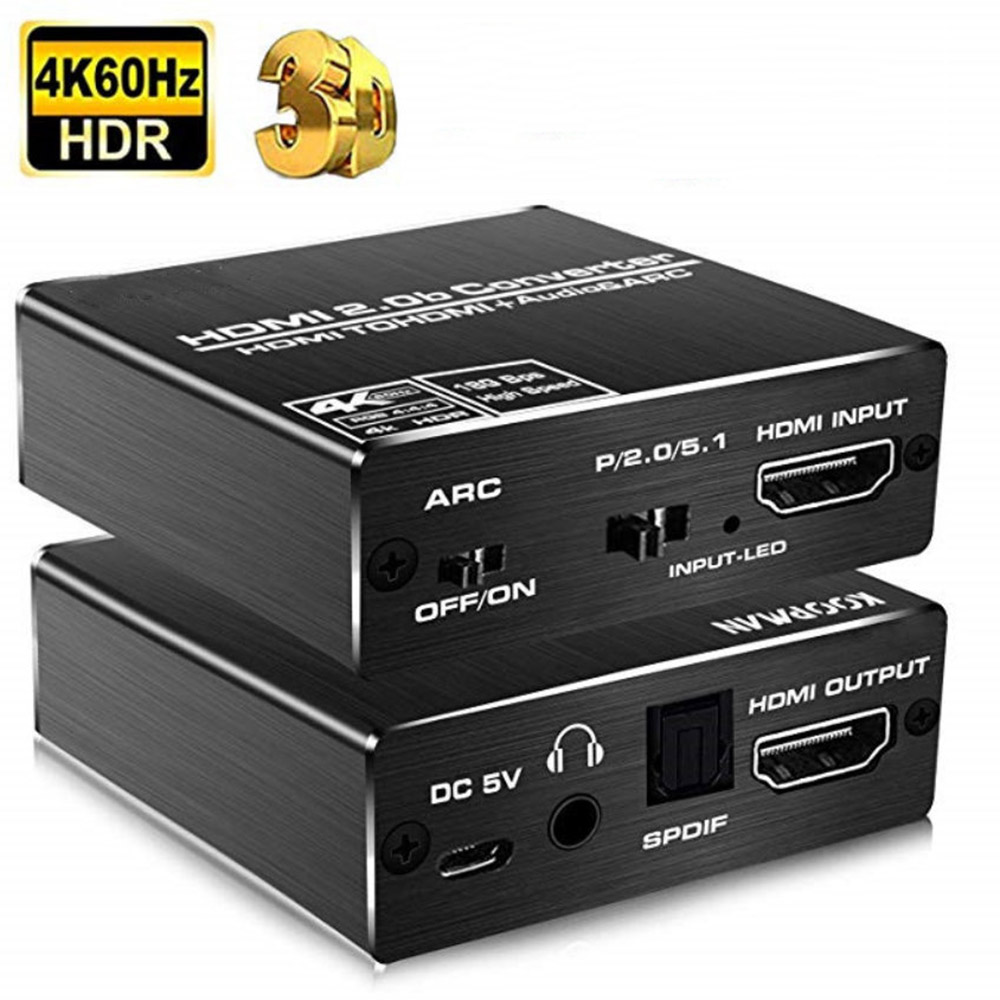

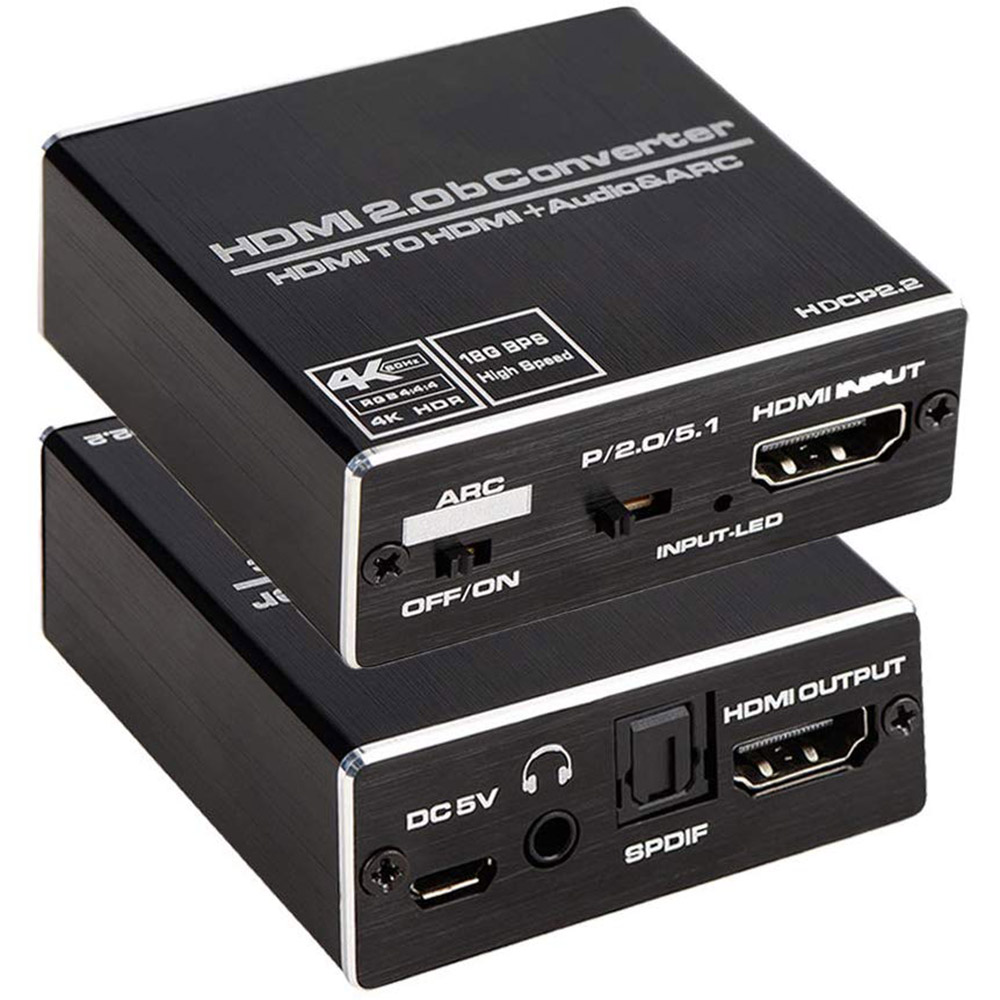

Product Description: This HDMI to HDMI + Optical Toslink SPDIF + 3.5mm L/R AUX Stereo Audio Out Converter increases the analog stereo audio output on the basis of the HDMI signal transmission. The analog stereo signal can be easily connected to the audio power amplifier. This converter also comes with a toslink SPDIF Port.

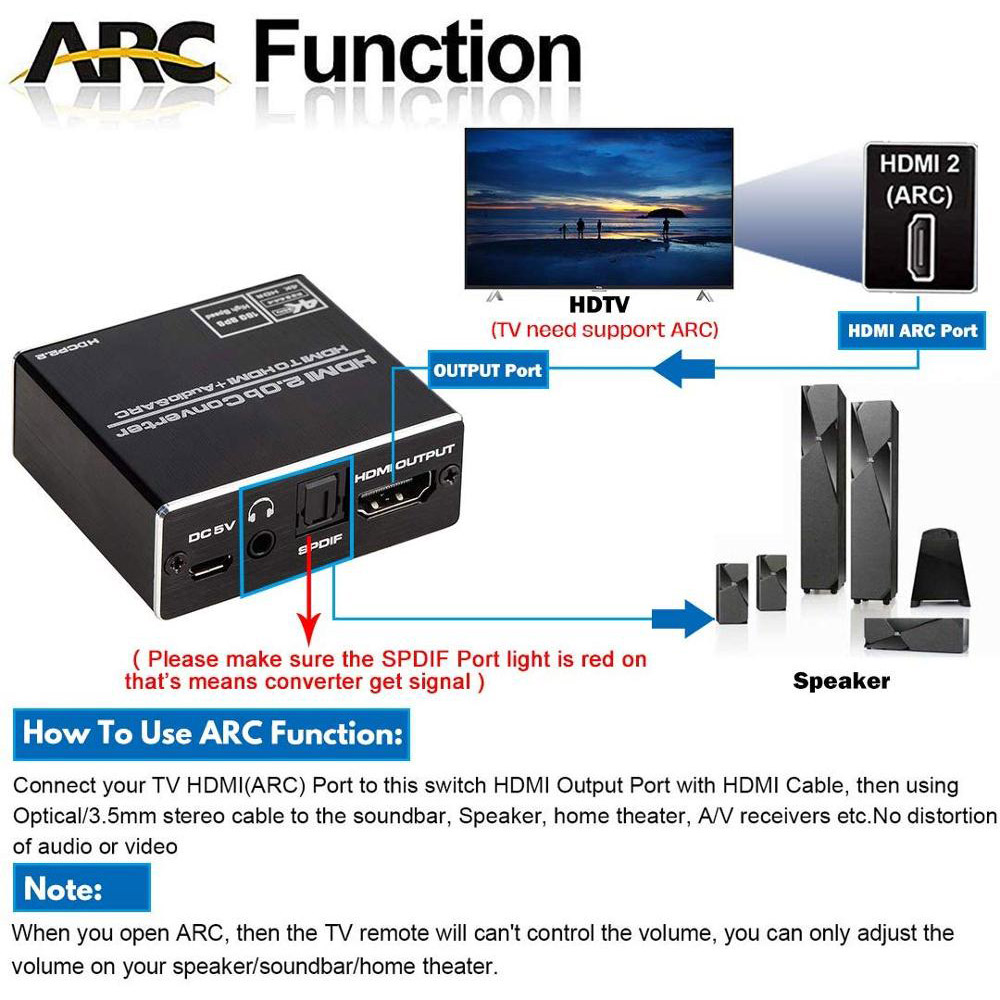

ARC Function: Connect your TV HDMI(ARC) Port to our this HDMI Audio Converter HDMI Output Port with HDMI Cable, and choose ARC on by the switch then using optical cable connect to the soundbar, Speaker, home theater, A/V receivers etc, No distortion of audio or video.

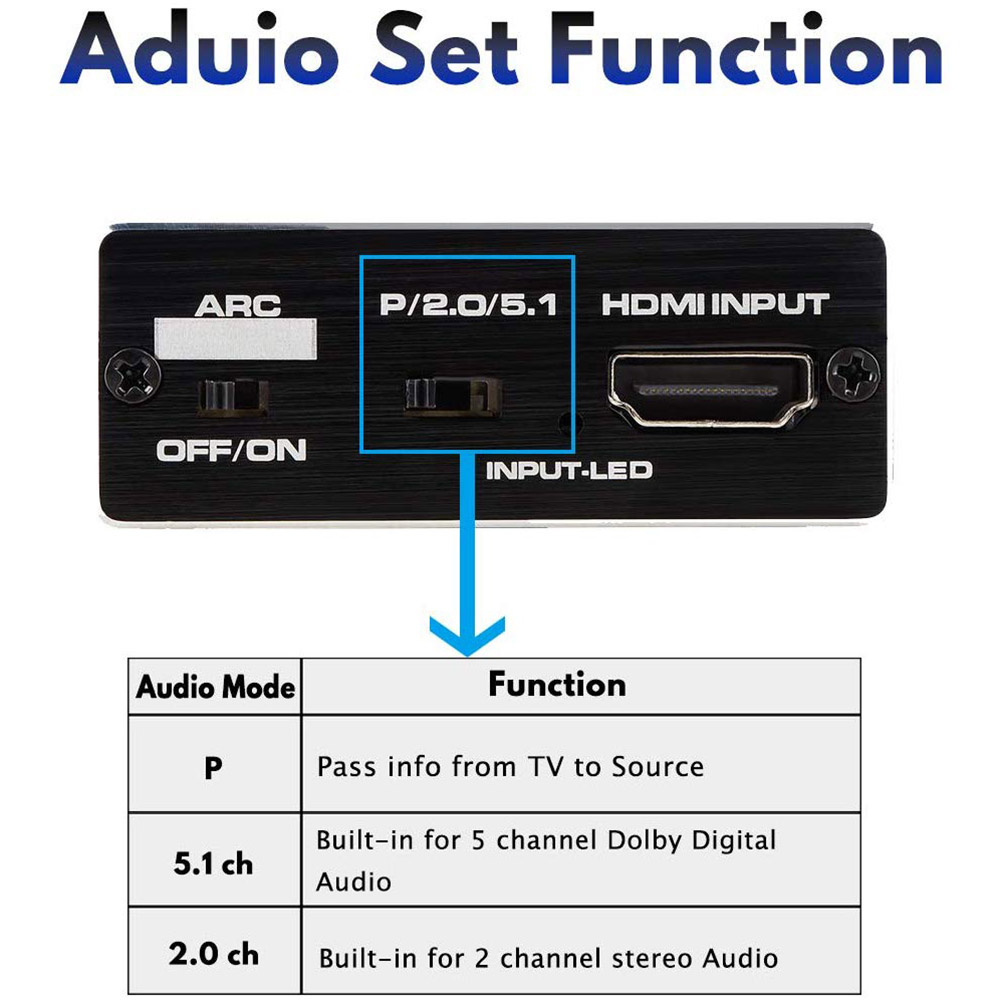

Product Features: 1.One HDMI input convert to one HDMI+Audio (SPDIF+R/L) output. 2.One audio support: Toslink SPDIF + 3.5mm R/L analog Audio Output. 3.Input Resolution : Up to 4K@60Hz,3D,1080p@60Hz, HDMI 2.0, HDCP 2.2, RGB 4:4:4. 4.HDMI to achieve the synchronization of audio signal separation. 5.There are PASS/2.0CH/5.1CH three kinds of audio mode options. 6.Max Band Width: 600MHz. 7.Max Band Rate: 18Gbps.
Product Specifications: Input port: 1 HDMI input (Yellow, White, Red) Output port: 1 HDMI Output, 3.5mm Audio Port,Toslink SPDIF Optical port Power: 5V/1A Power Adapter Color: Black
